The thermo-sensitive element of bimetallic trap is a bimetallic element cast through a special process by two metals of different expansion ratio.When the bimetallic element expands after heated,different expansion ratio results in bending.The thermo-sensitive element produced on the basis of this quality can act as a switch.Bimetallic Traps are divided into adjustable offline (BK,CS17H and CS47) and online (adjustable bimetallic element TB).
優點：
1、結構簡單，容易安裝和維修，抗水擊，排空性能優越。
2、利用高溫凝結水形成水封，沒有新鮮蒸汽泄露（零泄露）。
3、動作靈敏，無噪聲。
4、抗水擊，對壓力突然變化沒有影響。
5、可用于過熱蒸汽系統。
6、可以使用高壓高溫的蒸汽管線。
7、具有良好的排空氣性能，不怕凍。
Merits
1.Simple structure,easy to install and maintain,resistant to water hammer and superb emptying performance.
2.Water seal by high-temperature condensate,no leakage of fresh steam (zero leakage).
3.Flexible and noiseless.
4.Water hammer resistance with no effect from abrupt pressure changes.
5.Adoptable for overheat steam system.
6.Adoptable for high-pressure and high-temperature steam pipes.
7.Good air discharge quality with resistance to coldness.

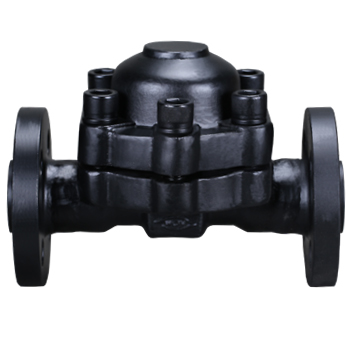

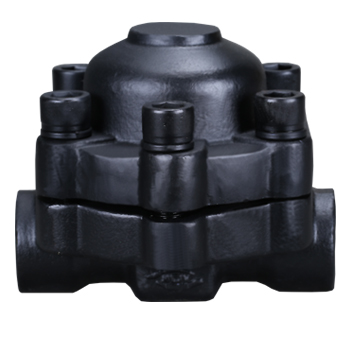

雙金屬片式疏水閥/BIMETALLIC TRAP

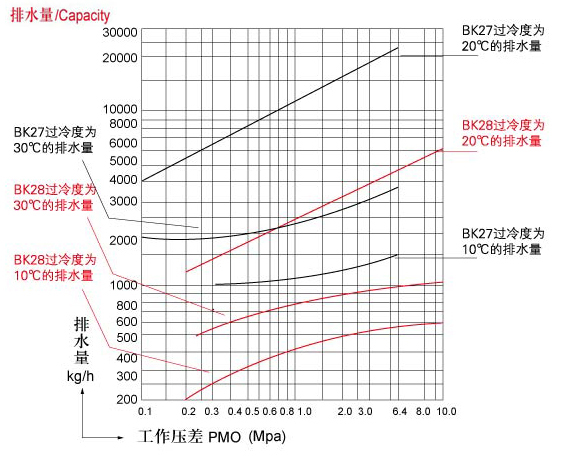

技術參數/Technique parameter
|
殼體壓力等級 Shell pressure grade |
負荷泄漏率 Load leakage |
使用介質 Used medium |
允許背壓率 Permitted Backpressure rate |
節能效果 Energy saving effect |
適用過熱蒸汽 Use superheated steam |
|
1.6、 2.5、 4.0、 6.4、 10MPA |
0% |
蒸汽、凝結水 Steam、 Condensate water |
≥75% |
優秀 Excellence |
適應 Adaption |
|
最大工作壓差 Maximum operating pressure differential |
抗凍性 Freezing resistance |
排水方式 Drainage method |
最高允許溫度 Maximum allowable temperature |
排空氣裝置 Air exhaust system |
抗水擊 Resis |
|
10.0MPA |
優秀 Excellence |
連續方式 Continue mode |
420~550℃ |
自動 Automatic |
適應 Adaption |
外形尺寸和重量/Prime out-form dimensions and weigh
|
產品型號 Product model |
口徑(DN) Calibre |
L法蘭 Flange |
L螺紋/ 焊接 Thread/ welding |
H1 |
H2 |
W |
重量(kg) weight |
使用壓力 范圍(MPa) Pressure Change range |
公稱壓力 (MPa) Nominal pressure |
|
BK284 BK286 |
15~25 32~50 |
230 250 |
130 |
130 |
25 |
160 |
11/16 |
0.1-10.0 |
10.0 |
主要零件材料/The materials of primary accessories
零部件名稱
Part and component name
材質
Material
閥體、閥蓋
Valve body、Valve cover
碳鋼、合金鋼
Carbon steel、Alloy steel
雙金屬片
Bimetal
不銹鋼金屬
Stainless steel
閥座
Valve seat
不銹鋼
Stainless steel
閥桿
Valve rod
銹鋼
Stainless steel
過濾網
Filtrating screen
不銹鋼
Stainless steel
1、選型時請提供工作壓力、工作壓差、凝結水發生量、工作溫度、連接方式及標準。
2、凝結水負荷的安全系數一般為2～3倍。
3、正確安裝、定期保養清除閥內污物，保證疏水閥正常工作和延長使用壽命。
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
